The art pipeline of Reckless Squad

Published

The art pipeline is something often underlooked by indie developers. You may think that you don’t need one because you don’t have 3000 3D models with different textures, materials, etc.

It may be true if you only have a small amount of images, sounds and music. But there are some cases when it’s very important to have a good pipeline, and Reckless Squad is one of those.

For the prototype of Reckless Squad, we used 2D sprites for the units:

The original Gunner's sprite
The original Gunner's sprite

They weren’t animated. I knew I needed 8 directions, at least 3 frames for the walk cycle, and a bunch of other animations like using a sword, a bow, or dying.

The amount of work was just astounding, and I knew I couldn’t do it alone. Worst, I’m not even an artist to begin with.

So, I had to find a solution and use my abilities as a programmer to produce all that content. It quickly become clear that 3D was the way to go.

However, we didn’t want the game to be 3D. It was a huge amount of work as is in 2D, no need to add more complexity. So we used pre-rendered 3D graphics, like Diablo or Age of Empires.

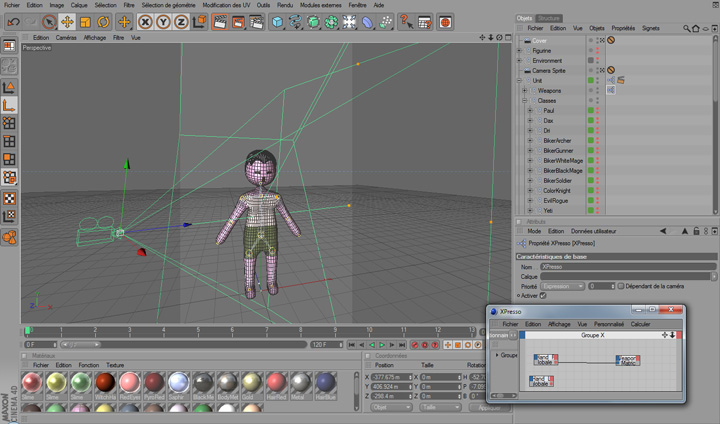

I used Cinema4D as a 3D package
I used Cinema4D as a 3D package

I started with modeling a base mesh with rough edges. Then I added Hyper NURBS to subdivide the mesh and make it look more organic.

I wanted to keep the look and feel of the 2D sprites, and I knew the final images wouldn’t be larger than 48×48 pixels. So I used really simple shapes, with few to no details and plain colors as textures.

Speaking of textures, I used palettes. If you played a NES or SNES RPG before, you may remember all the similar monsters with just different colors. It was because the developers used the same image with a different palette (to save time and memory). I used the same technique for Reckless Squad: I unwrapped the UV once, and then only changed the colors in the palette to make them match the unit.

The Zombies' palette texture
The Zombies' palette texture

The next step was rigging, no magic here: I just added bones and painted vertex weights. What’s interesting is how I used little scripts to attach props to each bones, because different colors would never be enough to differentiate the units.

The props used for the Pirate
The props used for the Pirate

When the system to customize the base mesh was ready, it was time to animate it.

I first listed all the frames I would need:

  • 1 idle

  • 3 walking

  • 3 using a sword/staff

  • 3 using a bow

  • 3 dying

  • 1 standing victorious

It’s 14 frames, just for one direction. Meaning 112 for an entire sprite sheet.

I made the timeline 112 frames long, and started making poses using the previously created rig. Once I finished a direction, I copy-pasted it 7 times and rotated the model to face new directions.

Then it was time to setup the rendering. I decided to use global illumination to shade the models because I didn’t wanted to make the light come from just one direction, it wouldn’t feel very natural. With global illumination, the light seems to come from everywhere and makes the shape stands out. The downside was that the time to render a sprite could be quite long...

I configured the rendering so that it would save each frame to two bitmap files: one for the diffuse color and one for the alpha mask. It was the more automatic setup I could come up with.

Diffuse and alpha mask
Diffuse and alpha mask

So I basically had 224 bitmap files on my hard disk drive, and I needed to combine them into a sprite sheet usable by the game.

And I needed to make it automatic as well. So I wrote a little script in C# for that. The program creates a blank texture sheet and then loads the diffuse color and the alpha mask files for each frame and combines them before placing them on the sheet.

When finished, it saves the final sheet to a new PNG file, with transparency.

A finished sprite sheet
A finished sprite sheet

I’m glad I took the time to setup a real art pipeline, as automated as possible, because I ended up with 46 sprite sheets.

5 152 frames in total! It would really have been impossible for me to do them by hand in a pixel art fashion.

However, we did have some concerns with the graphics. Mainly, all the units share the same silhouette. Using very different and instantly recognizable silhouettes would have made the game easier to play and visually nicer. Just look at Team Fortress 2 and the amazing work done by Valve to give each class a unique silhouette.

But I still know it would have been impossible to make them all by hand. Using morphing could have been a solution, and it would be interesting to research it next time.

The final result, in-game
The final result, in-game
